5.Router-Dynamic Routing(EIGRP)

EIGRP protocol

• administrative Distance : 90(D) 170(D, Dex)
• matrix : B,D,R,L,M
• code : D(같은 AS), D EX(재분배)
• Update : 순간 (빠르다)

Router(config)#router eigrp ? <1-65535> Autonomous System WORD EIGRP Virtual-Instance Name

EIGRP 기본

router eigrp [지정번호] network [네트워크주소] no au

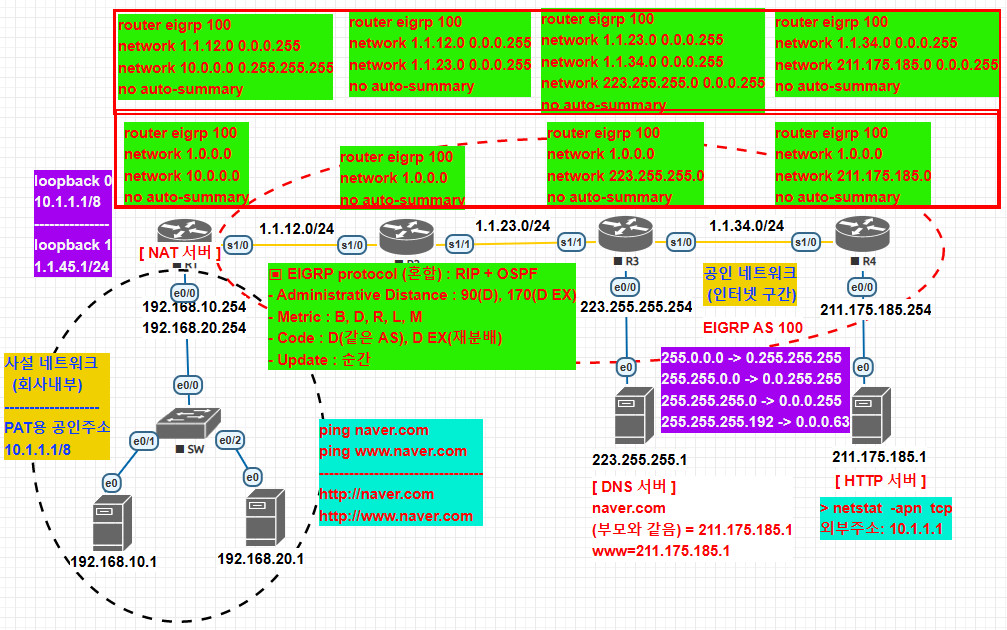

• R1
  Router(config)#router eigrp 100
• Router(config-router)#network 1.0.0.0
• Router(config-router)#network 10.0.0.0
• Router(config-router)#no au
• R2
  Router(config)#router eigrp 100
  Router(config-router)#network 1.0.0.0
  Router(config-router)#no au
  Router(config-router)#exit
• R3
  Router(config)#router eigrp 100
  Router(config-router)#network 1.0.0.0
  Router(config-router)#network 223.255.255.0
  Router(config-router)#no au
  Router(config-router)#exit
• R4
  Router(config)#router eigrp 100
  Router(config-router)#network 1.0.0.0
  Router(config-router)#network 211.175.185.0
  Router(config-router)#no au

EIGRP -wildcard mask

만약 같은 대역대지만 분리해서 보내고싶은곳과 보내고 싶지 않은 대역대가 있다면 와일드카드 마스크로 막아줄 수 있다. 1.1.12.0/24 대역대와 1.1.45.0/24 network [네트워크 주소] [ wildcard mask]

• R1
  router eigrp 100
  network 1.1.12.0 0.0.0.255
  network 10.0.0.0 0.255.255.255 no au
• R2
  router eigrp 100
  network 1.1.12.0 0.0.0.255
  network 1.1.23.0 0.0.0.255 no au
• R3
  router eigrp 100
  network 1.1.23.0 0.0.0.255
  network 1.1.34.0 0.0.0.255
  network 223.255.255.0 0.0.0.255 no au
• R4
  router eigrp 100
  network 1.1.34.0 0.0.0.255
  network 211.175.185.0 0.0.0.255
  no au
  exit
