17.Redistribute - 혼합

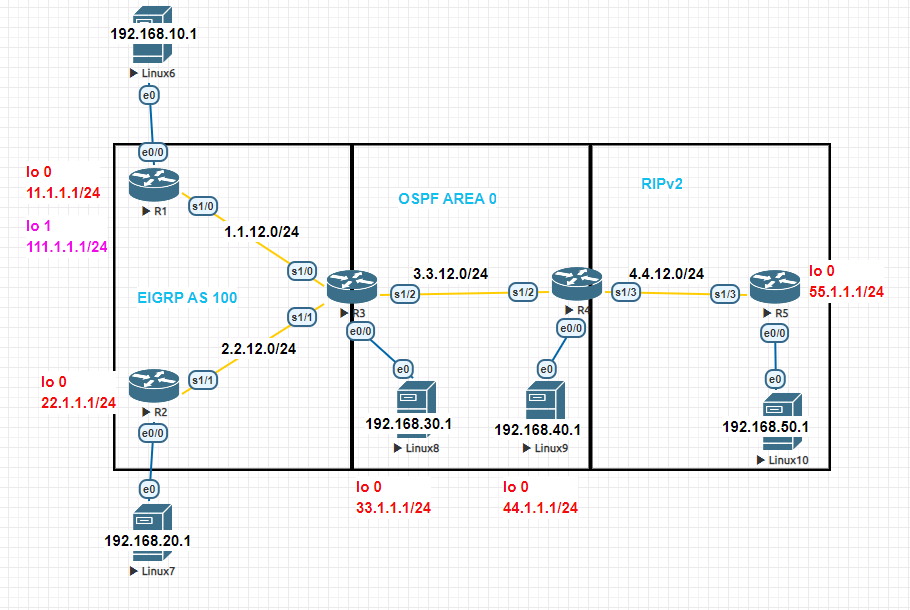

문제1

<조건!> loopback은 재분배 넣어주기, 모두 통신 되어야 한다.

궁금증 !
1. 경계의 부분에만 재분배를 해주어도 되는 것인가?
⇒R3,R4 의 경계 부분에만 재분배해주면 된다. loopback
2. connect로 연결시 그 한 라우터에만 재분배해주면 다른 곳으로 설정이 가는가
=> 겹쳐져 있는곳 전부 다 해줘야 한다. R3에서는 EIGRP , OSPF 둘 다 connect로 재분배 해주어야 한다.

RIPv2 =R
EIGRP=D, D EX(재분배)
OSPF- O, OIA ,E1/E2/N1/N2(재분배)

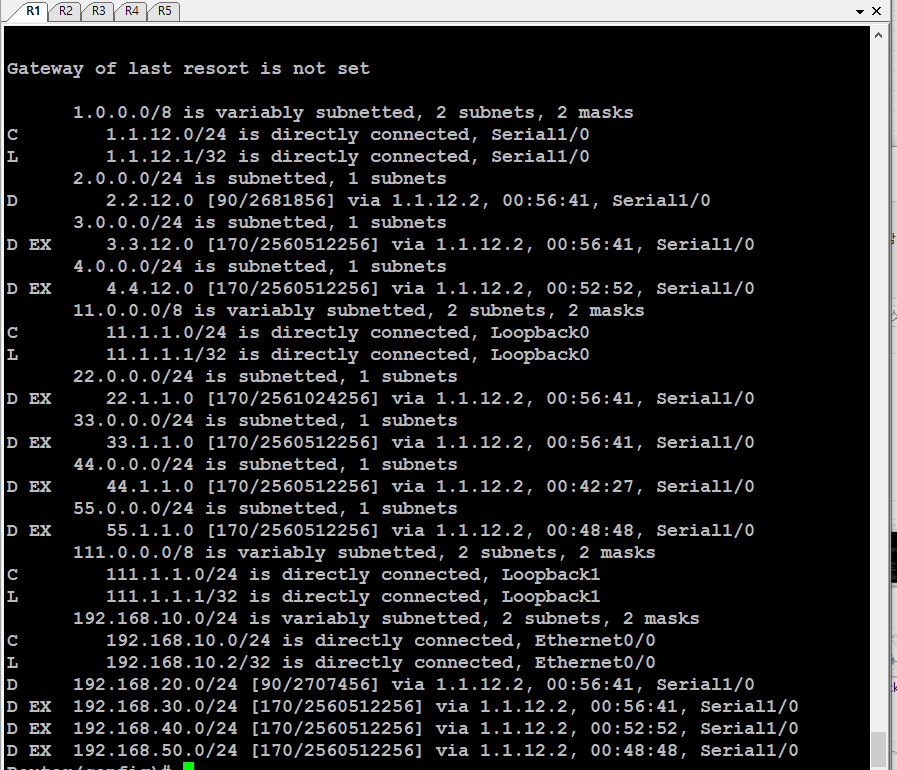

R1

Router(config)#router eigrp 100
Router(config-router)#network 192.168.10.0 0.0.0.255
Router(config-router)#network 1.1.12.0 0.0.0.255
Router(config-router)#redistribute connected metri 1 1 1 1 1  (Loopback재분배)
Router(config-router)#no au
Router(config-router)#exit

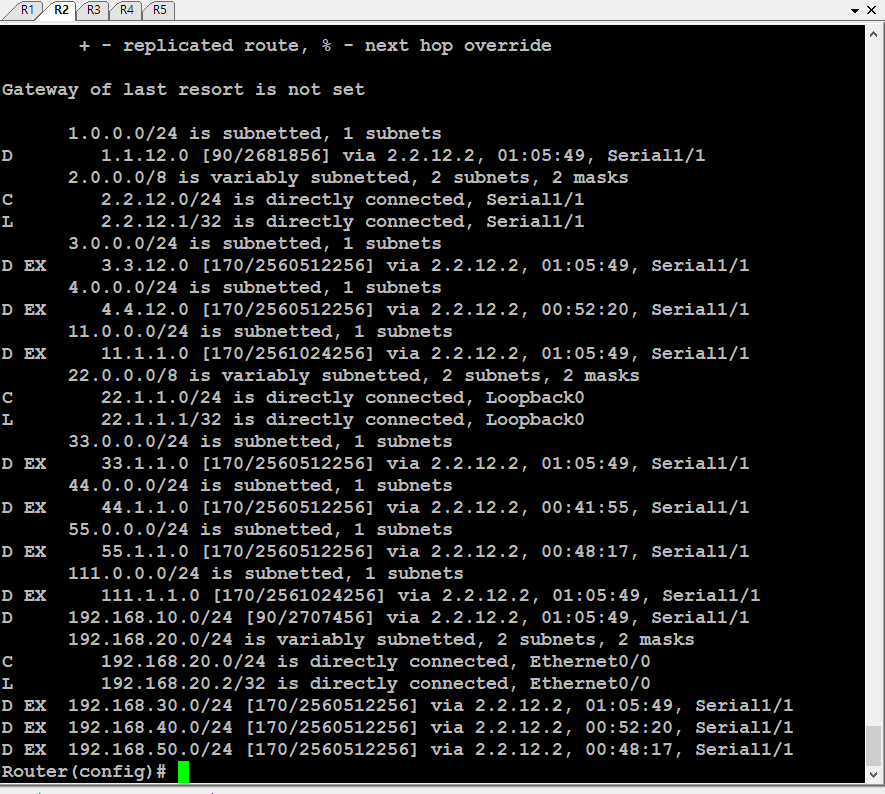

R2

Router(config)#router eigrp 100
Router(config-router)#network 192.168.20.0 0.0.0.255
Router(config-router)#networt 2.2.12.0 0.0.0.255
Router(config-router)#redistribute connected metri 1 1 1 1 1  (Loopback재분배)
Router(config-router)#no au

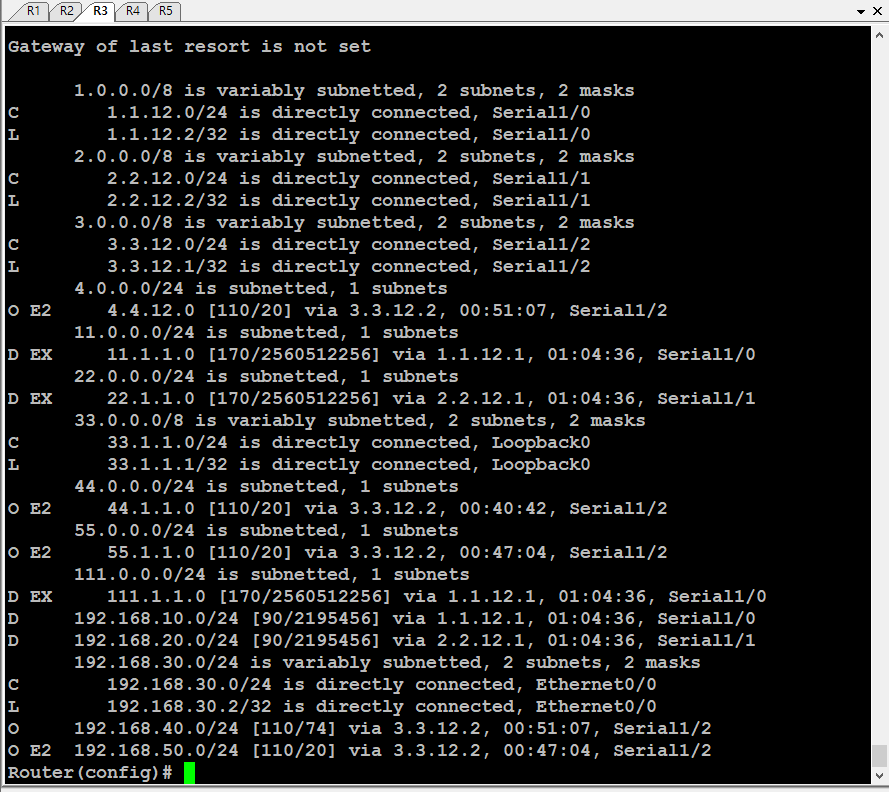

R3

Router(config)#router eigrp 100
Router(config-router)#network 1.1.12.0 0.0.0.255
Router(config-router)#network 2.2.12.0 0.0.0.255
Router(config-router)#redistribute connected metri 1 1 1 1 1
Router(config-router)#redistribute ospf 1 metric 1 1 1 1 1
Router(config-router)#no au
Router(config-router)#exit
Router(config)#
Router(config)#router ospf 1
Router(config-router)#network 3.3.12.0 0.0.0.255 area 0
Router(config-router)#network 192.168.30.1 0.0.0.255 area 0
Router(config-router)#redistribute eigrp 100 subnet metric 20
Router(config-router)#redistribute connected subnet metri 20
Router(config-router)#exit

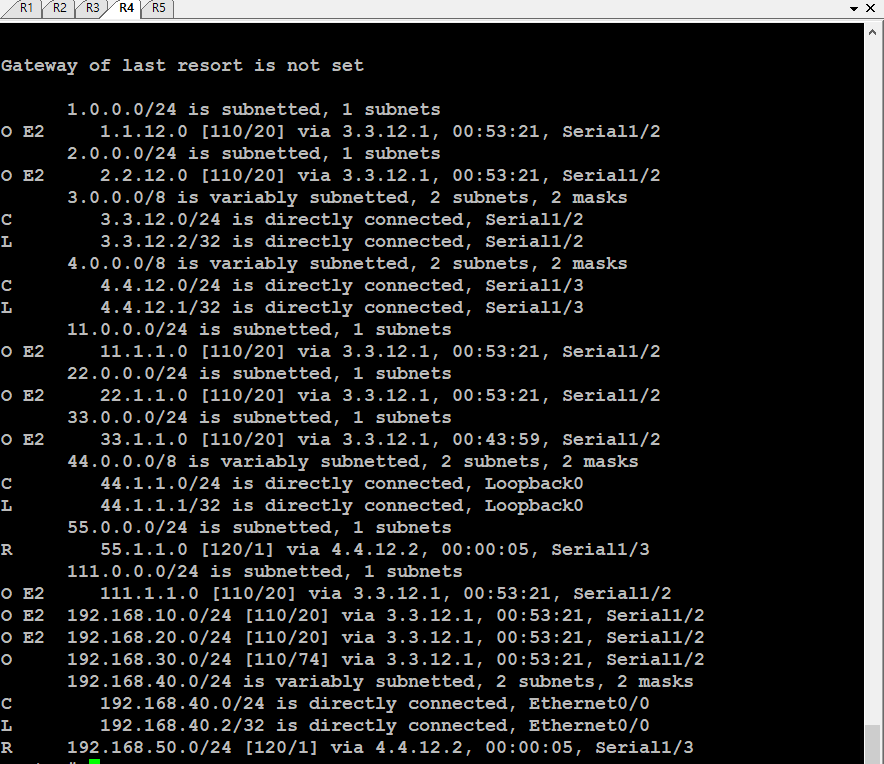

R4

Router(config)#router ospf 1
Router(config-router)#network 3.3.12.0 0.0.0.255 area 0
Router(config-router)#network 192.168.40.0 0.0.0.255 area 0
Router(config-router)#redistribute rip subnet metric 20
Router(config-router)#redistribute connected metric 20 subnets
Router(config-router)#exit

Router(config)#router rip
Router(config-router)#ver 2
Router(config-router)#network 4.4.12.0
Router(config-router)#redistribute ospf 1 metric 1
Router(config-router)#redistribute connected metric 1
Router(config-router)#no au
Router(config-router)#exit

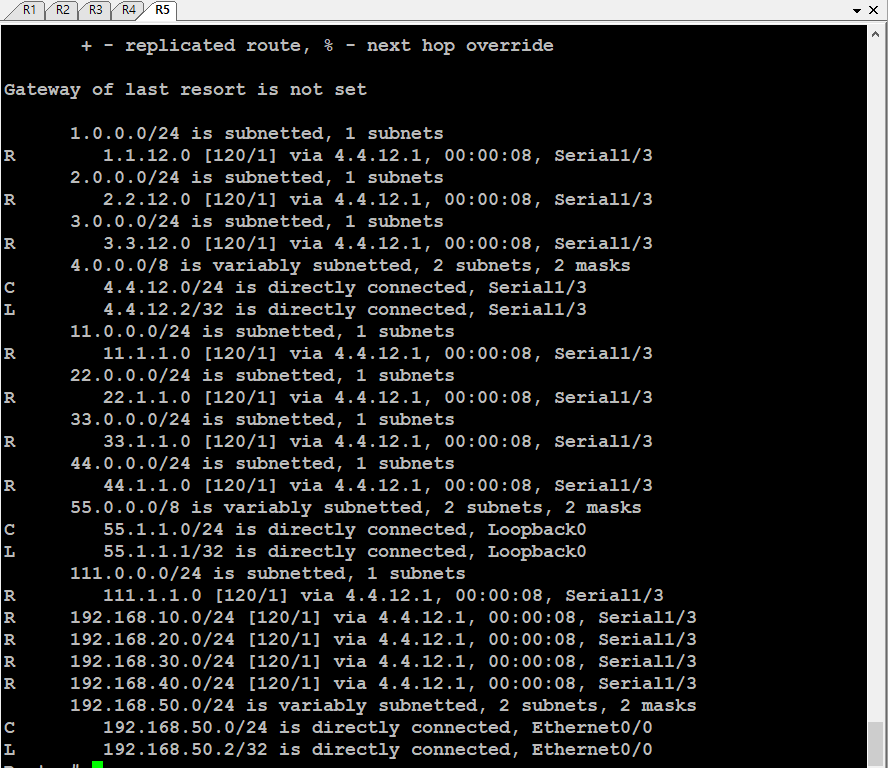

R5

Router(config)#router rip
Router(config-router)#ver 2
Router(config-router)#network 192.168.50.0
Router(config-router)#network 4.4.12.0
Router(config-router)#redistribute connected metric 1
Router(config-router)#no au
Router(config-router)#exit
