[ASA.Firewall]라우팅

ASA.Firewall.라우팅 : STATIC ROUTE

[ASA]
interface Ethernet0
 nameif inside
 security-level 100
 ip address 192.168.10.2 255.255.255.0
!
interface Ethernet1
 nameif dmz1
 security-level 50
 ip address 192.168.20.2 255.255.255.0
!
interface Ethernet2
 nameif outside
 security-level 0
 ip address 192.168.30.2 255.255.255.0
!
interface Ethernet3
 nameif dmz2
 security-level 50
 ip address 192.168.40.2 255.255.255.0

route inside 192.168.15.0 255.255.255.0 192.168.10.1 1
route dmz1 192.168.25.0 255.255.255.0 192.168.20.1 1
route outside 192.168.35.0 255.255.255.0 192.168.30.1 1
route dmz2 192.168.45.0 255.255.255.0 192.168.40.1 1

policy-map global_policy
 class inspection_default
	  inspect icmp
!
service-policy global_policy global

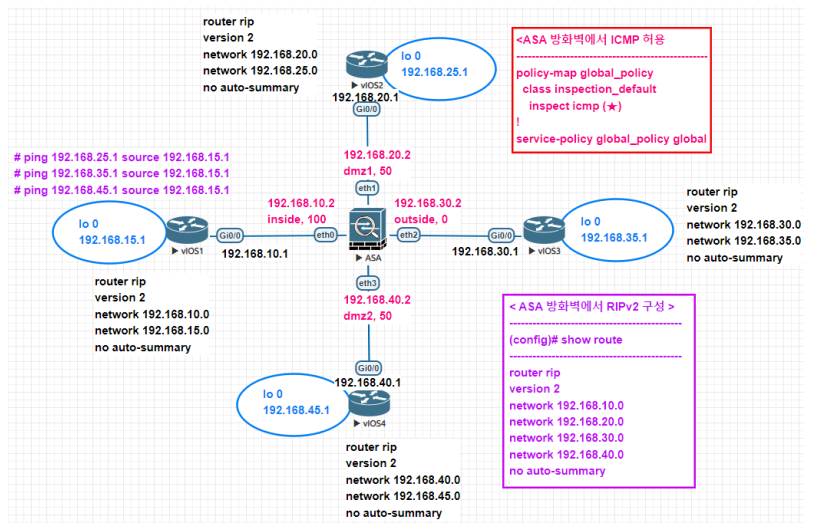

ASA.Firewall.라우팅 : RIPv2

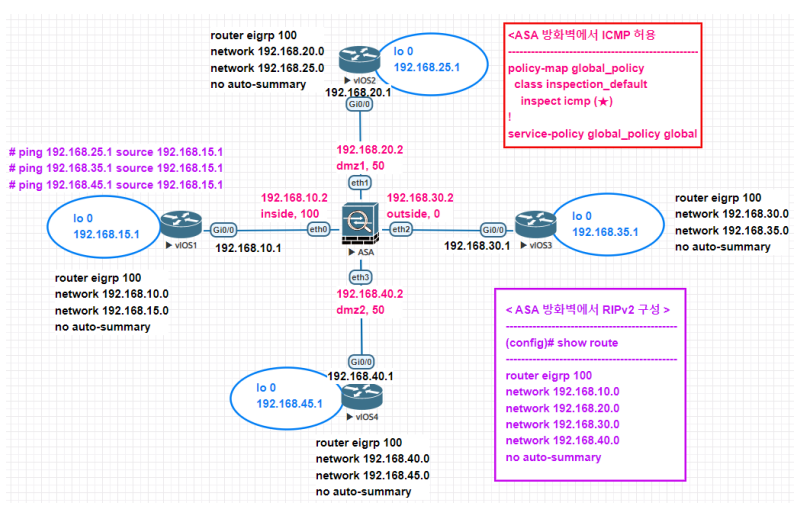

ASA.Firewall.라우팅 : EIGRP

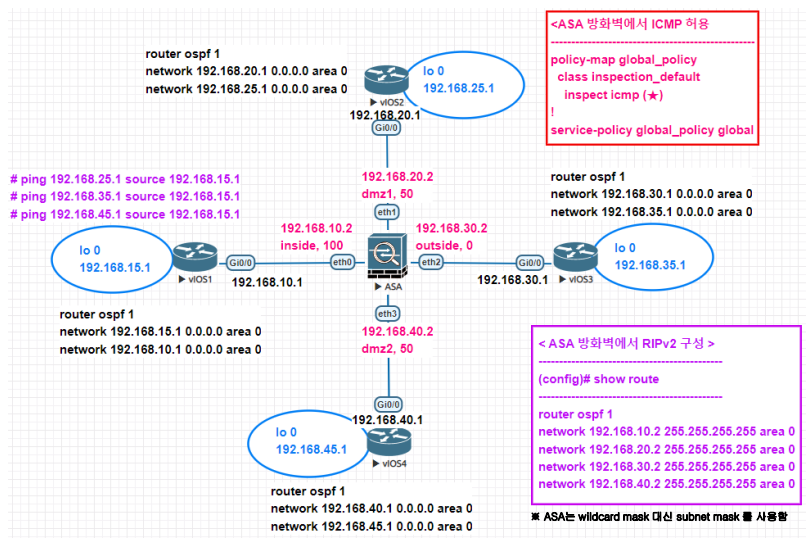

ASA.Firewall.라우팅 : OSPF
